CVE1222 Structural Analysis 1: Stress, Strain, Stability, and Truss Evaluation Coursework (AY24/25)
University | Singapore University of Social Science (SUSS) |
Subject | Structural Analysis |
PART 1: STRESS TRANSFORMATION
A wooden beam is loaded with several point forces, as depicted in Fig.1. It is supported by a pin at B and a smooth support (roller) at A. Grains of wood in the beam make an angle of 60Β° with the horizontal direction. Determine the normal and shear stresses that act perpendicular and parallel to the grains, respectively, at points C and D.
PART 2: STRAIN TRANSFORMATION

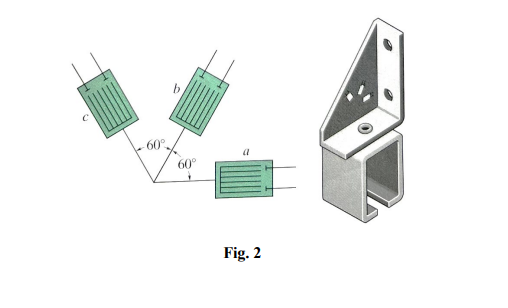

A 60Β° strain rosette is mounted on the surface of a steel bracket to measure the strain state, as shown in Fig. 2. The following readings are obtained for each strain gauge: ππππ = β440 Γ 10β6, ππππ = 1120 Γ 10β6 and ππππ = 175 Γ 10β6. The material properties of the steel bracket are: Youngβs modulus E = 200GPa, and Poissonβs ratio Ξ½ = 0.3.
(1) Determine the principal strains and the associated orientations.
(2) Determine the maximum in-plane shear strain and the associated normal strain.
(3) Determine the principal stresses and the associated orientations.
PART 3: STATIC DETERMINACY

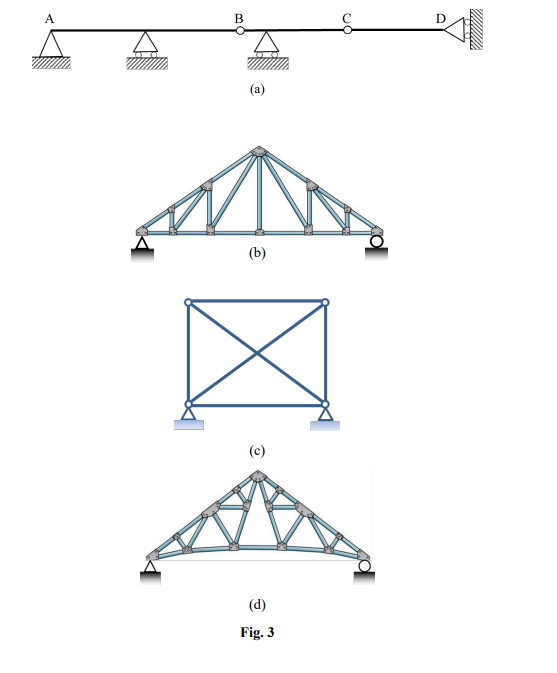

Classify each of the structures in Fig. 3 as statically determinate, statically indeterminate or unstable. If statically indeterminate, specify the degree of indeterminacy.
PART 4: PLANAR TRUSS ANALYSIS

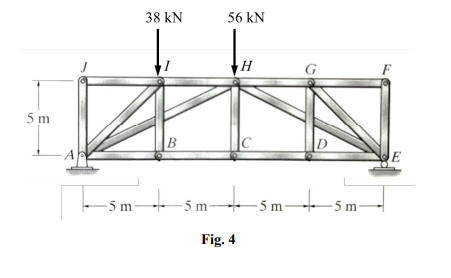

A truss is loaded with two point forces at its joints, as shown in Fig. 4. Use Method of Joints and/or Method of Sections to obtain the member force for all truss members. State if the members are in tension or compression.
[Hints: You may firstly identify all zero-force members to simplify the truss. Then, use Method
of Joints if at a joint there are only 1 or 2 unknowns. When using Method of Section, choose
the section path so that there are at most 3 unknowns.]
