LAB REPORT (LR01)

This assignment is worth 10% of the final mark for BPM107 Construction IT & Building Information Modeling.

The cut-off date for this assignment is 14 March 2025, 2355 hrs.

You should review the materials in your LAB unit notes before beginning the assignment. In addition, you may find it necessary to perform additional research in order to provide better answers to the questions.

You will have to use Autodesk Revit & Autodesk Navisworks or any other relevant BIM software to help you complete the assignment. You will also need to learn the basic of the BIM software such as its user interface and functions prior to attending the Lab sessions.

Lastly, it is important to note that plagiarism is an academic offence that is taken very seriously by the University. Students are expected to maintain and uphold the highest standards of academic, professional and personal integrity at all times. When in doubt, please check the University’s guidelines on academic honesty and plagiarism.

The objective of the Lab-Report assignment is to provide students with exposure to the various applications of BIM (such as BIM 3D, 4D and 5D) through commonly used software in the industry. The questions are constructed to include these different dimensions and applications of BIM, in order to level the learning ground for students from different background, with different experiences.

Submission of this Lab-Report (LR01) shall consist of the following items.
a) Lab Report in word (.doc) document
b) Autodesk Revit File (.rvt)
c) Excel File (.xls)
d) Animation File (.avi/.mp4)
You are to ‘zipped’ the above files and submit it to the Canvas portal not later than the assignment cut-off date. Failure to do so, shall be registered as a no submission from the student.

You tutor will advise in due course how these files are to be submitted during the Lab Session.

Question 1

Your company has been tasked with designing a Multi-Functional Community Centre at Punggol. You are the appointed Architect and will use a BIM authoring software to complete the design.
(a) Model the Community Centre as a three-storey building with the following
specifications:

Ground Floor:
• Lobby and Waiting Area: 150 m²
• Indoor Sports Hall: 500 m²
• Public Toilets: 75 m²

First Floor:
• Gym and Fitness Area: 300 m²
• Yoga Studio: 150 m²
• Toilets: 50 m²

Second Floor:
• Event Hall with a seating capacity of 200: 400 m²
• Kitchen and Pantry: 100 m²
• Toilets: 50 m²

Additional Requirements:
• Incorporate natural ventilation elements (e.g., open courtyards).
• Design a rooftop garden with shaded seating.
• Provide an adjacent outdoor parking lot for 30 cars.

Deliverables:
1. Ground, First, and Second Floor Plans
2. North, South, East, and West Elevations
3. Two Cross-Section Views
4. Five 3D Views

The building shall have a setback distance of about 7m from the front and 4m for all the remaining sides; establish topo surface of the site. The gridlines shall be about 3m or 5m apart (recommended) The first floor shall be 5.5m in height and the remaining floors shall have a height of 4.5m.

Note: Your screenshots should include the entire Software interface as evidence of the authoring software used. You may use the standard families/objects in the Software for the assignment. Provide screenshots of your model based on the following requirements and submit your screenshots in the word (.doc) document: (30 marks)

(b) Rendering:
– One exterior view of the main building entrance.
– One interior view of the Event Hall.
Present the final design of the project. Render ONE (1) 3D exterior view showing the Multi-Functional Community Centre entrance and ONE (1) 3D internal view of your model showing the Event Hall.

Include the rendered images in the word document (.doc) for submission.
(10 marks)

(c) Perform a clash detection / interference test on the model using Navisworks or any other suitable software. Highlight and explain one issue with screenshots. (5 marks)

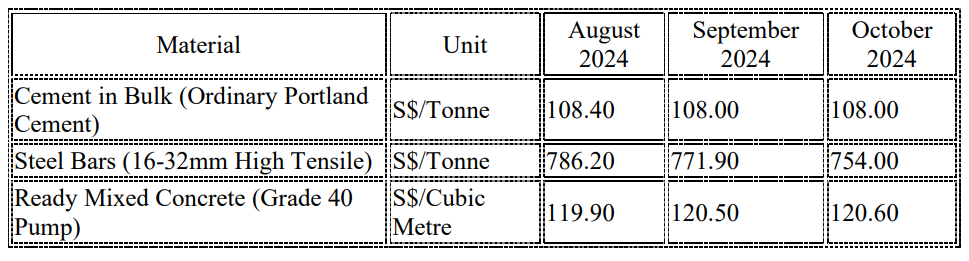

(d) Provide a BIM-based cost estimate for the design based on your model in Q1(a). Submit the screenshots of your cost estimate and include it in the word document (.doc) and include the Excel (.xls) file of the cost breakdown.  (15 marks) Here is the table for construction material prices delivered to site in Singapore over the last three months, based on data from the Building and Construction Authority (BCA):

Source: BCA Key Construction Information (updated October 2024). You may assume arbitrary rates for other elements. Accuracy of rates is insignificant for this exercise.

Question 2

Export your Community Centre model into Autodesk Navisworks or an equivalent software.

Simulate the construction sequence for the following tasks:
1. Build the foundation and parking lot.
2. Construct the building’s structure.
3. Install walls, floors, and roofing.
4. Fit out the interiors (e.g., gym equipment, furniture).
5. Landscape the rooftop garden and parking area.
Apply project scheduling techniques and develop an arbitrary schedule for this project and create a 4D simulation video with a project schedule visible in the video. Export the completed simulation to an AVI or MP4 file and submit the file as part of this assignment. (25 marks)

Question 3

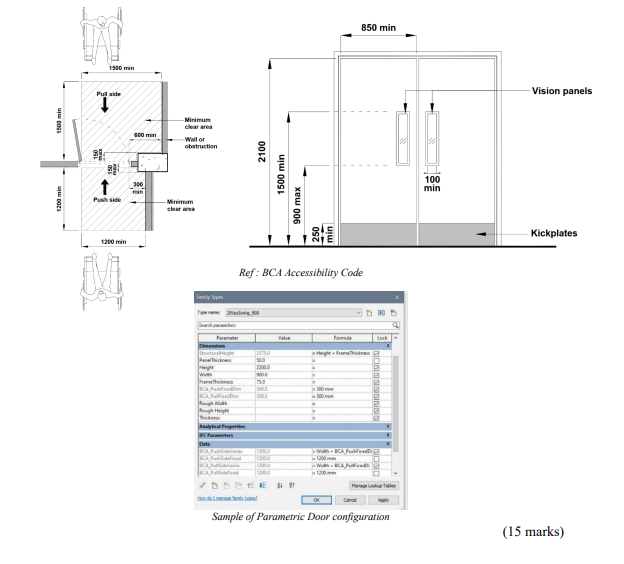

After submission of your drawings to the authority, the regulatory officer informed that your BIM model was missing doors that complied to the Accessibility Code. Some of the doors were also missing a vision panel as they were situated along circulation routes.

Task: Demonstrate how would you create a parametric door with “pull side”/”push side”, as well as vision panels.
